Service manual mistakes

[ronenfe]

I've already found some:
The speedo gear cable should be clamped in the rear left corner.

[ronenfe]

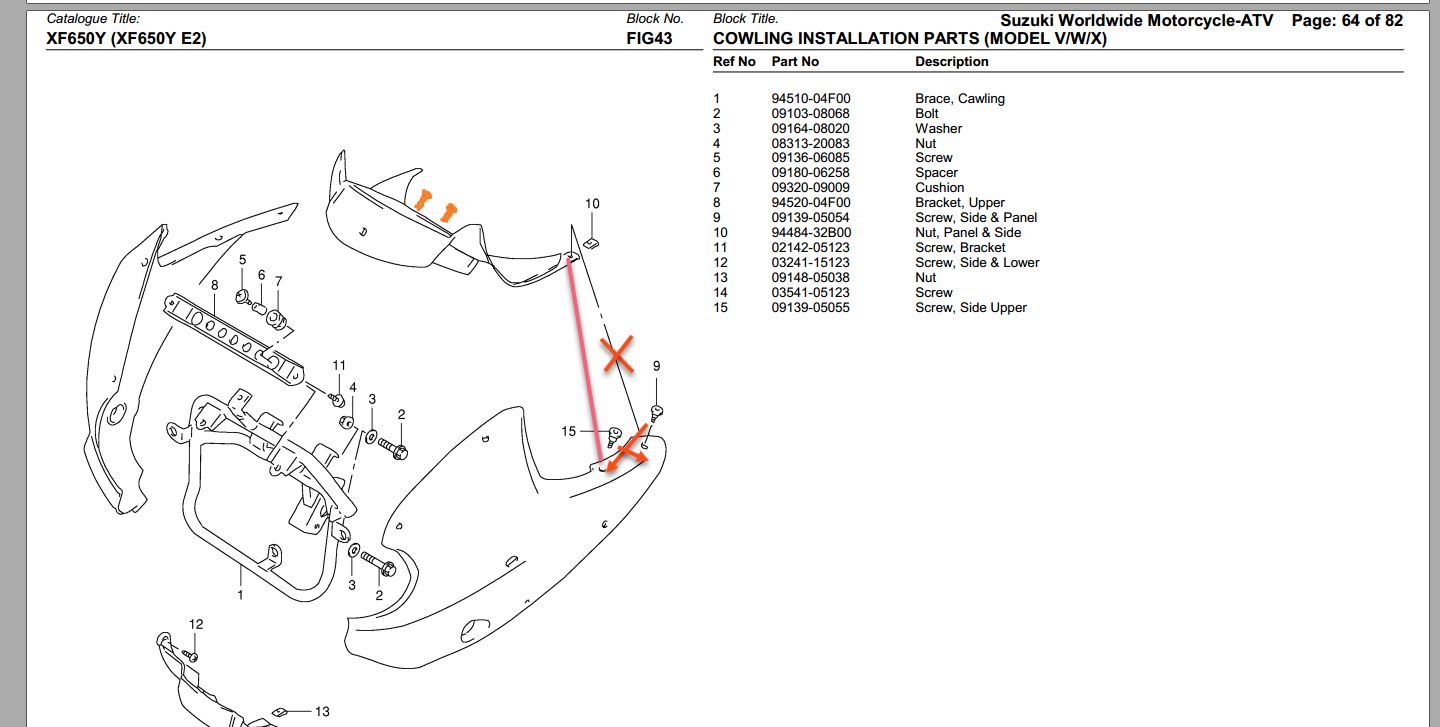

The black line goes to the front hole, together with the screw, and the screw in the front should be in the back.
Also there are 2 screws that are missing completely from the diagram, painted in orange.

[ronenfe]

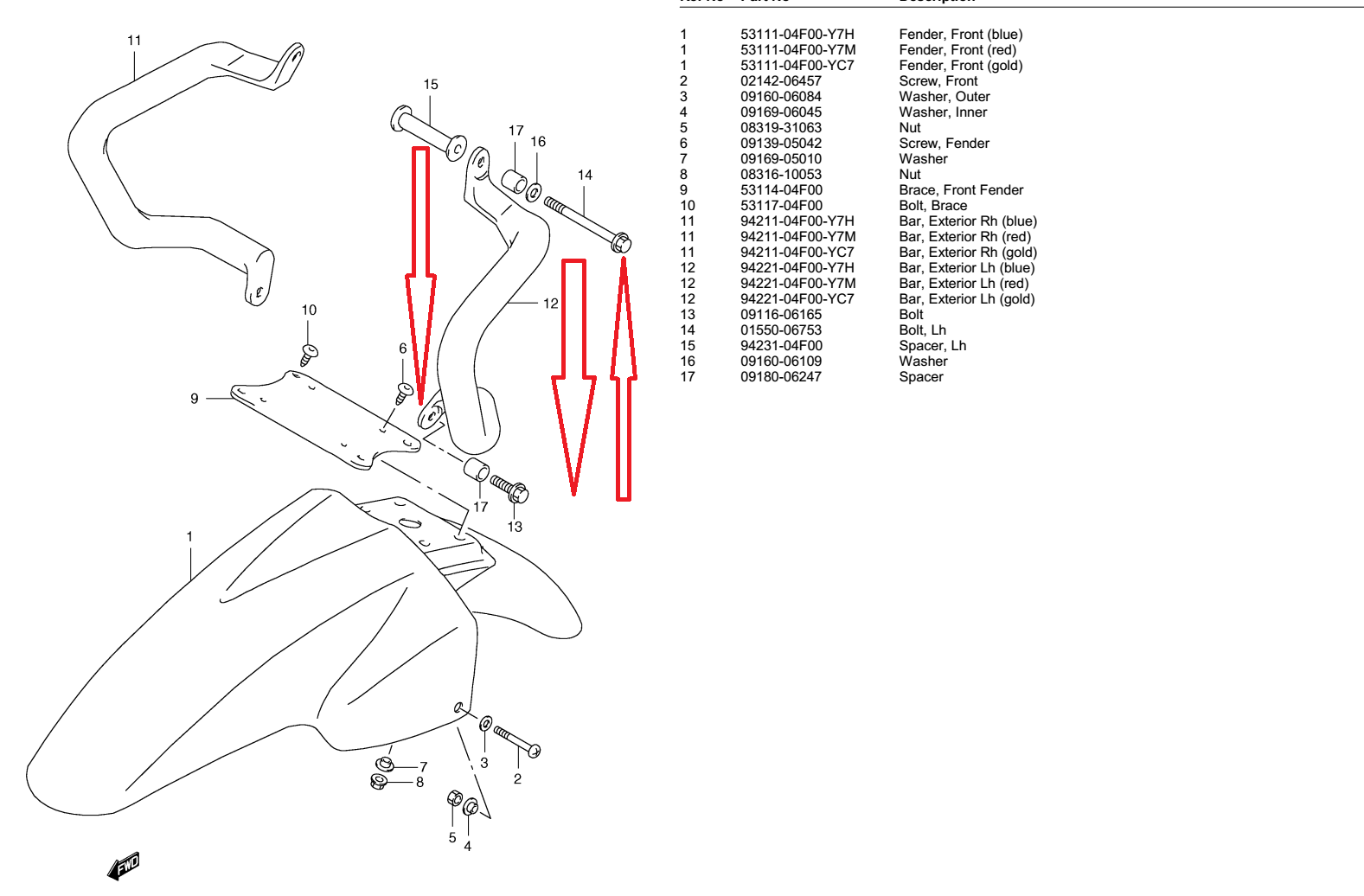

The long spacer and bolts should be at the bottom and not at the top.

[AoS]

I've never checked the parts reference for mistakes. What I know of are:

• There's an omission in the owner's manual. It does not contain a service interval for the swingarm protector. It should be checked at least as often as the chain has to be replaced.
• One other mistake I know is an inacurate torque reading in the service manual. I remember a thread where somebody destroyed a screw because of this, I cannot find it though.

[ronenfe]

You are talking probably about the rear shock lower bolt torque, same mistake as the dr.

It's too high.

http://drriders.com/shock-removal-t7492.html

http://drriders.com/service-manual-erro ... 16293.html

Sorry for posting it in the wrong topic. Please move.
